| Stock-No. |
1020-20297 |
| Category |

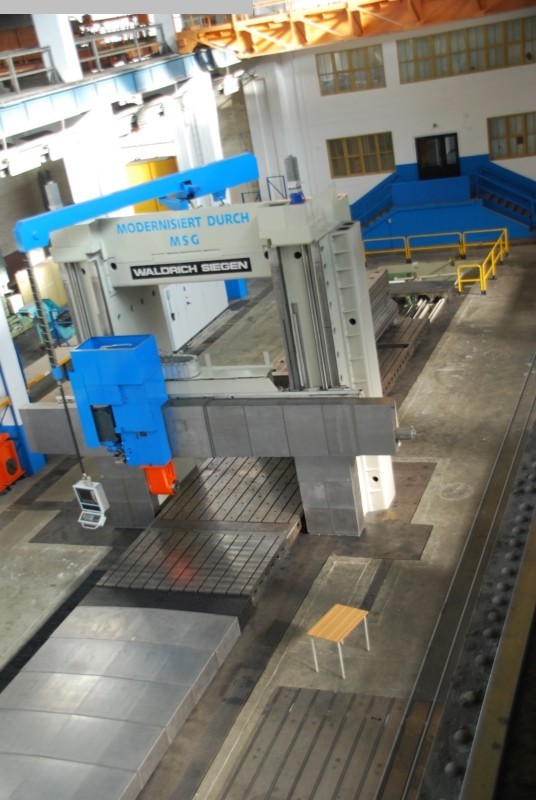

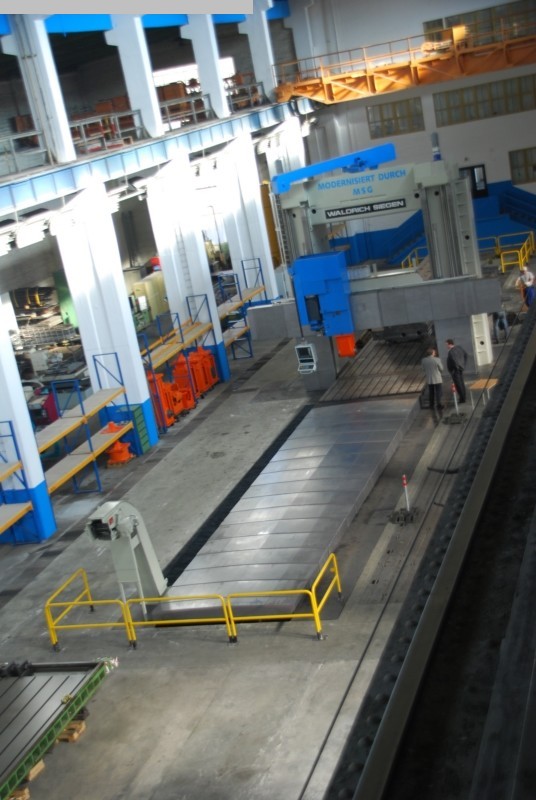

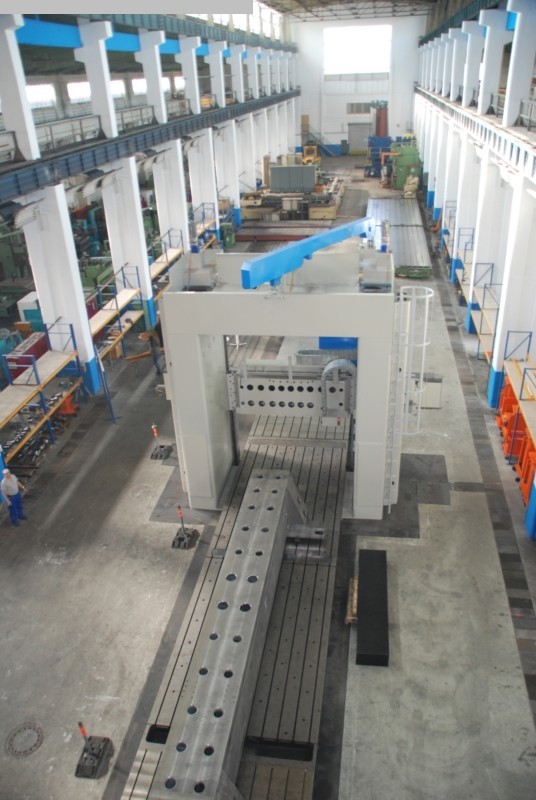

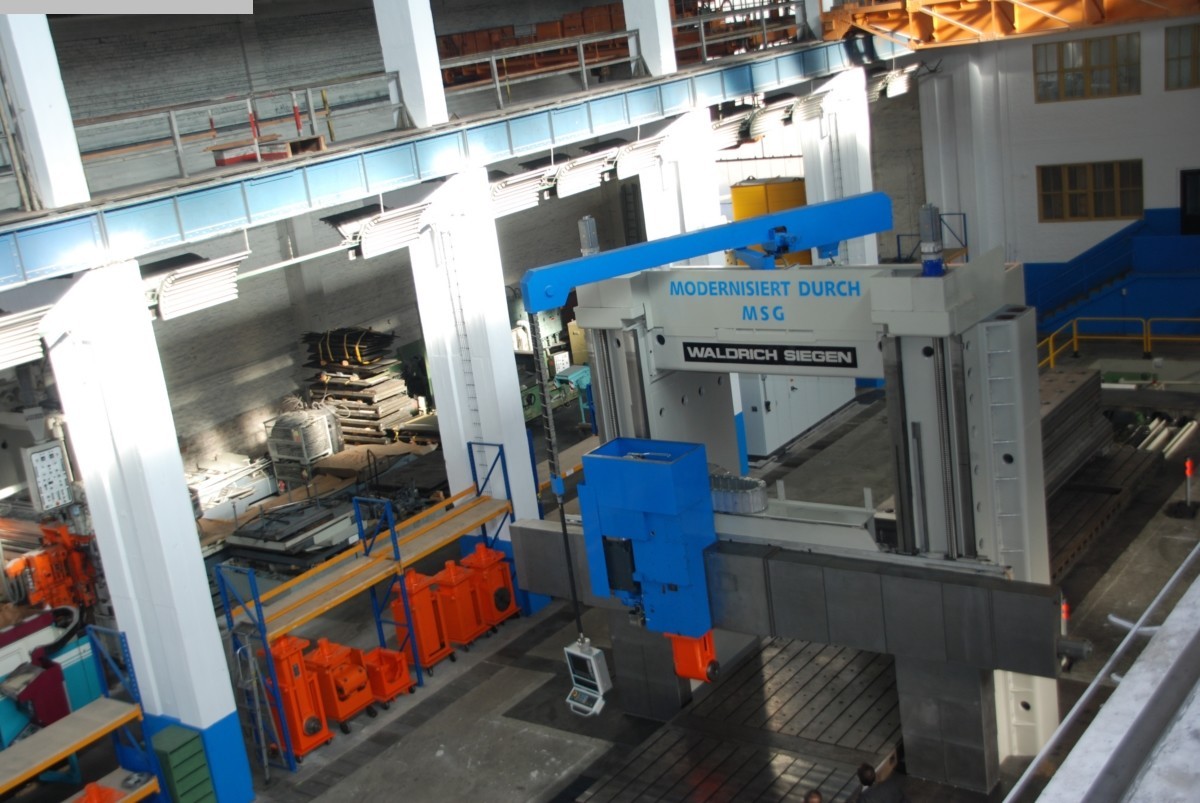

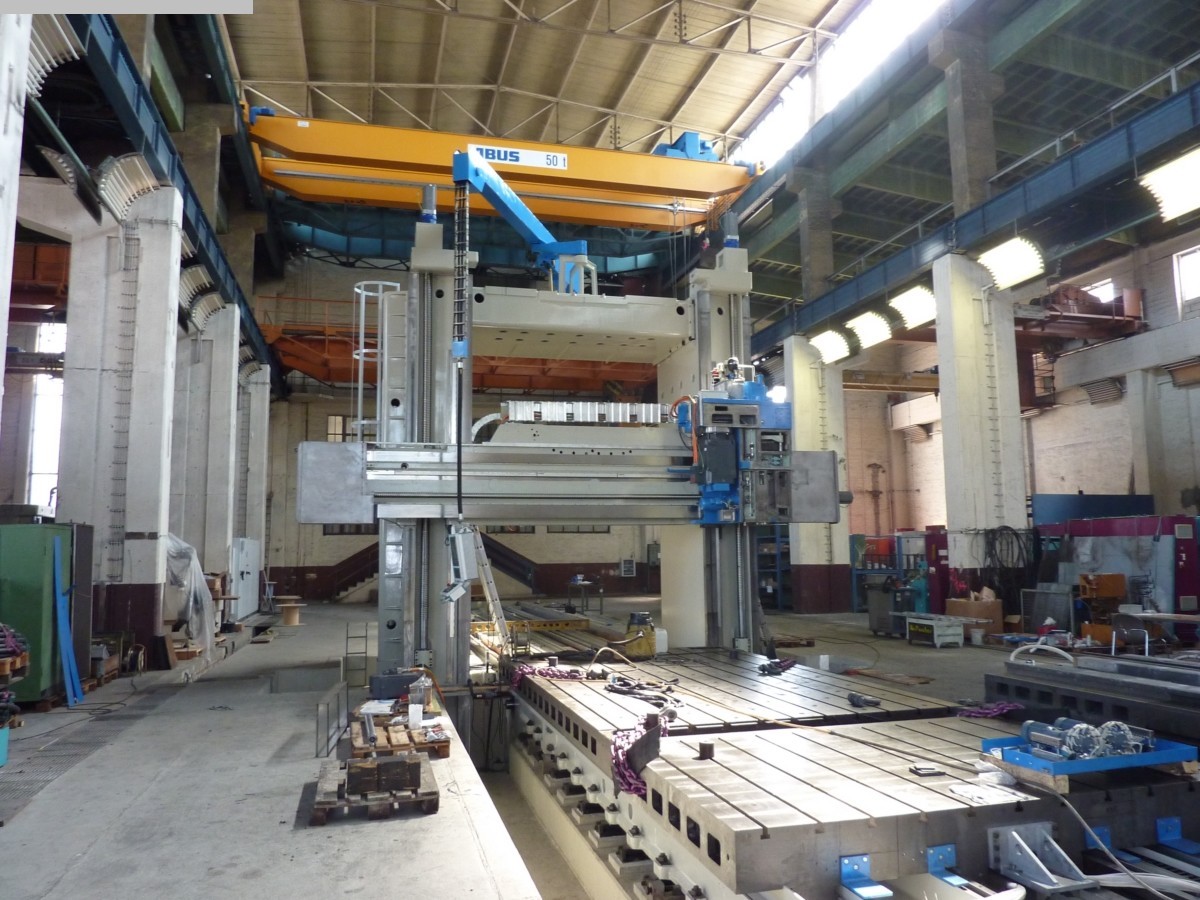

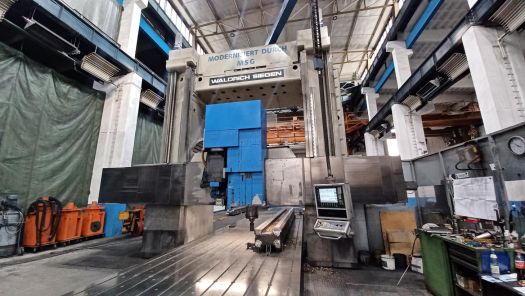

Planer-Type Milling M/C - Double Column |
| Make |
WALDRICH-SIEGEN |
| Type |
LF 3550 / 4000 CS |
| New in |
1966 / 2010 |
| Control |
SIEMENS 840 D Powerline |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |
| x-travel |
14000 mm |
| y-travel |
4480 mm |
| z-travel |
3000 mm |
| w-travel |
300 mm |
| table: |
|
| table load |
(145) 450 t |
| table width |
3100 mm |
| table length |
14770 mm |
| Passage height |
3800 mm |
| passage width |
3200 mm |
| diameter of quill |
305 mm |
| spindle turning speed range |
max. 600 U/min |
| spindle motor |
100 kW |
| rapid travel x/y/z |
12 / 6 / 6 m/min |
| output |
100 kW |
| quill: |
ISO 60 |
| control |
SIEMENS 840 D Powerline |
| total power requirement |
- kW |
| total wight |
- t |
| dimensions of the machine ca. |
- m |
| Description |
Complete retrofit in 2010
- Siemens 840D powerline CNC control
- Table guide: hydrostatic
-- Hydrostatic system redesigned for max. load of 450 tonnes (with even load
distribution)
- Orthogonal milling head ISO 60
- Angle milling head ISO 60

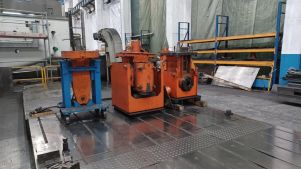

- Additional attachment heads available that have not been used to date (extra
option)
|
