| Stock-No. |
1020-20505 |
| Category |
Planer-Type Milling M/C - Double Column |
| Make |
ZIMMERMANN |
| Type |
FZU 32 |
| New in |
2022 |

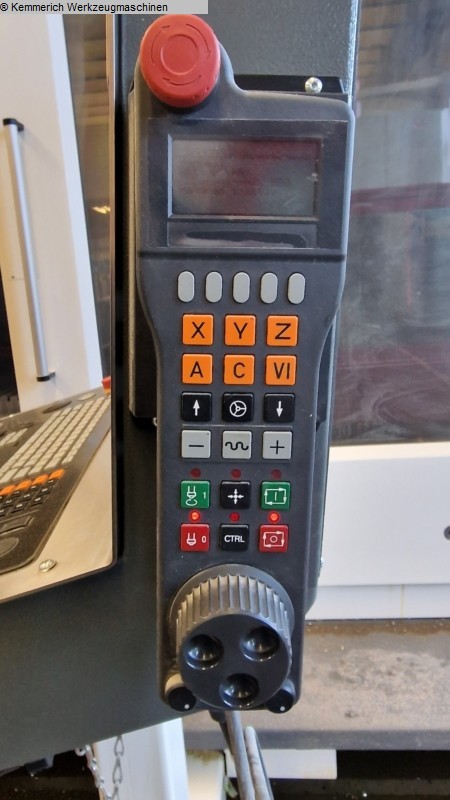

| Control |

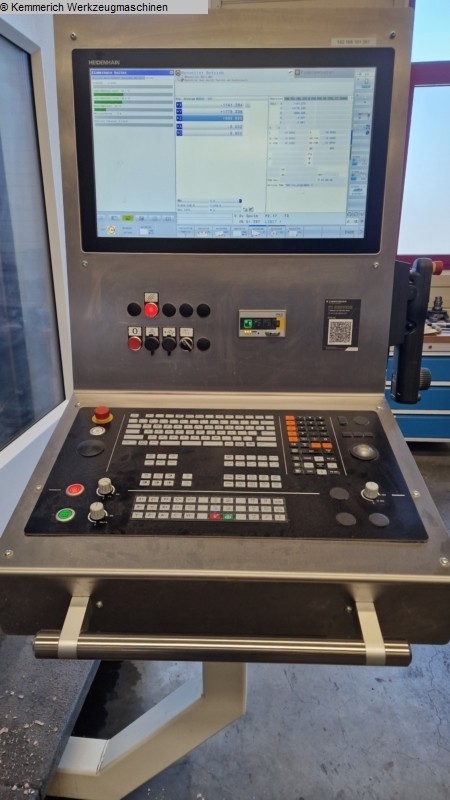

HEIDENHAIN TNC 640 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Germany |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |
| x-travel |
2500 mm |
| y-travel |
3500 mm |
| z-travel |
1500 mm |
| Control |
HEIDENHAIN TNC 640 |
| c-axis |
+-360 ° |

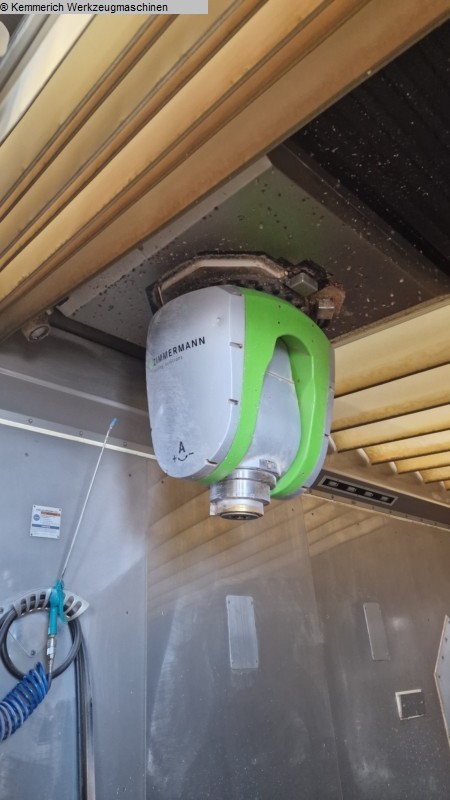

| milling head -swivable +/- |
+-110 ° |
| milling head swivable ca. |
+-360 ° |

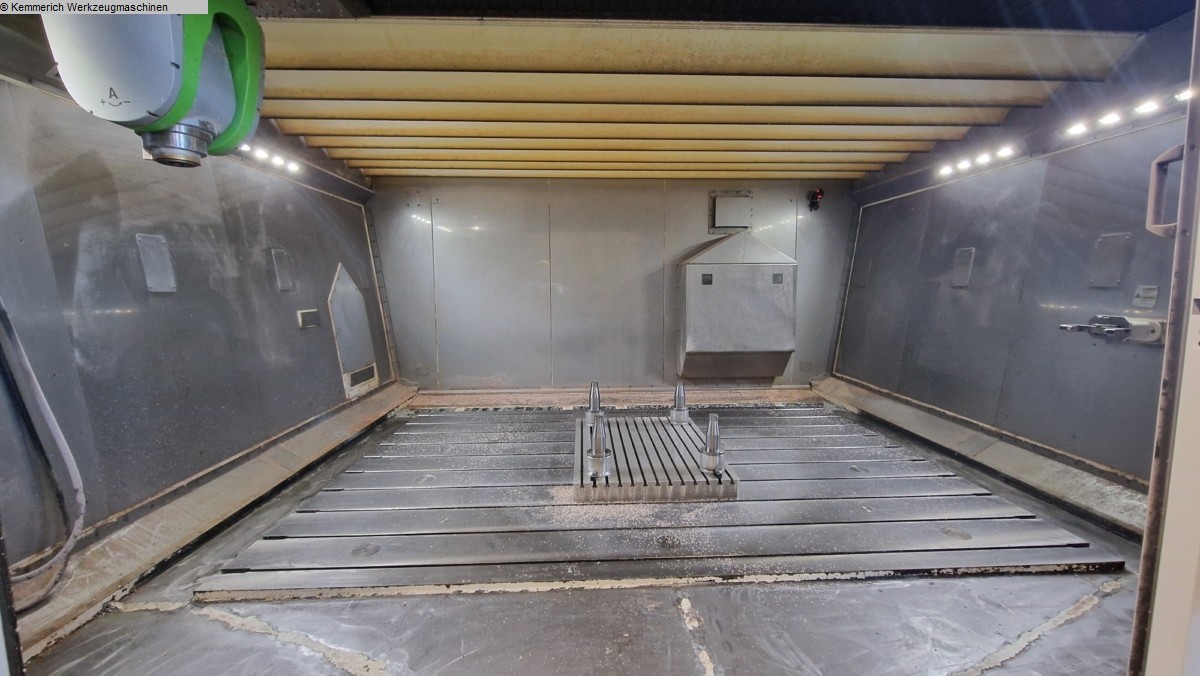

| table dimension - longitudinal |
2500 mm |
| table dimension - cross |
3500 mm |
| table load |
6 t/m² |

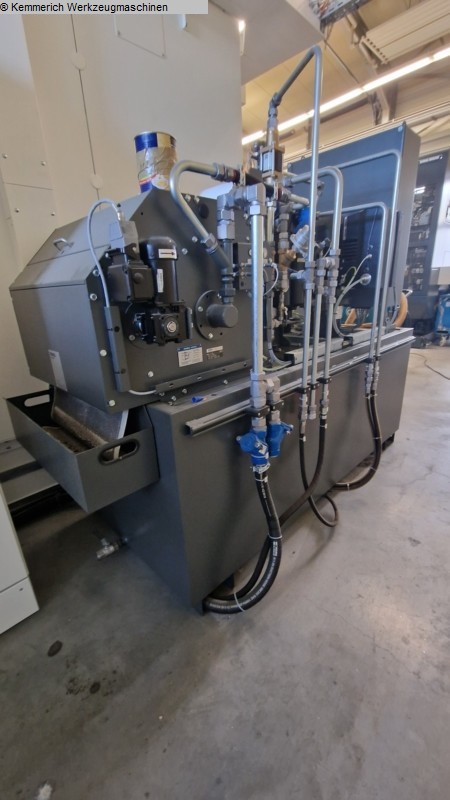

| coolant |
IKZ 70 bar |
| Feed speed |
60 m/min. |
| spindle turning speed range |
24000 U/min |
| tool taper |
HSK-A63 |
| milling spindle motor |
S6 (40% / 2 min) 41 kW |
| max. torque on the spindle |
S6 (40% / 2 min) 49 Nm |
| milling spindle motor |
S1 (100% / 2 min) 34 kW |
| max. torque on the spindle |
S1 (100% / 2 min) 39 kW |

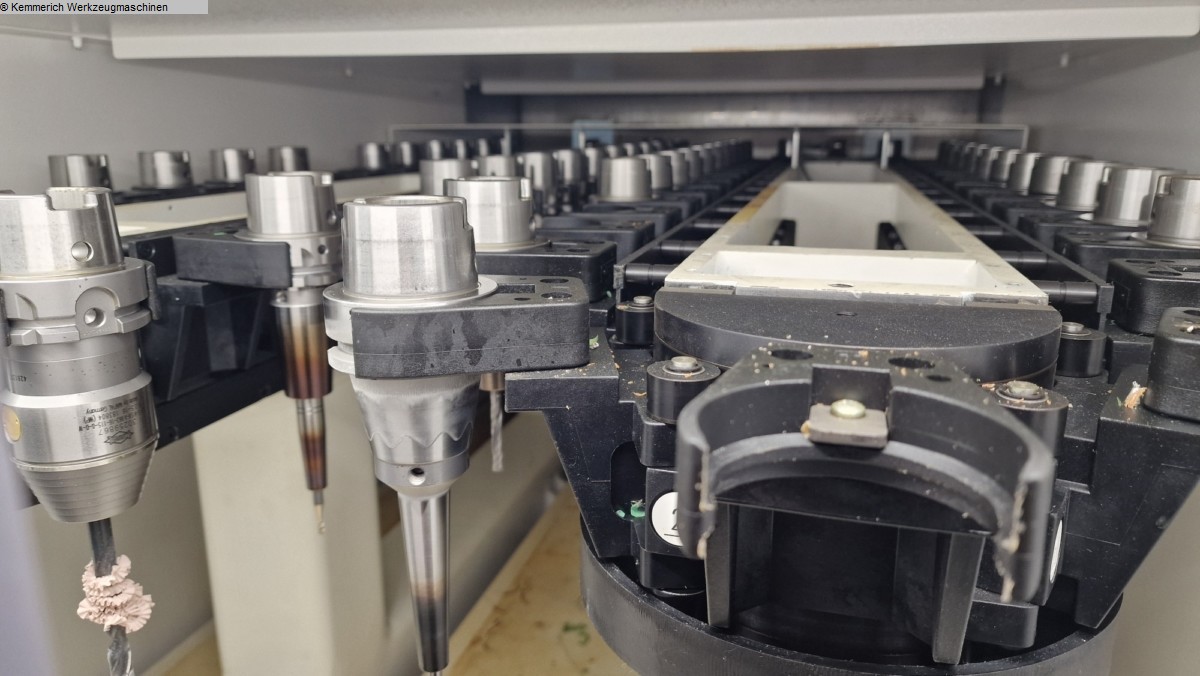

| tool change unit |
60 Pos. |
| total power requirement |
kW |
| weight of the machine ca. |
74 t |
| dimensions of the machine ca. |
4 x 7.5 x 5.4 m |
| Description |

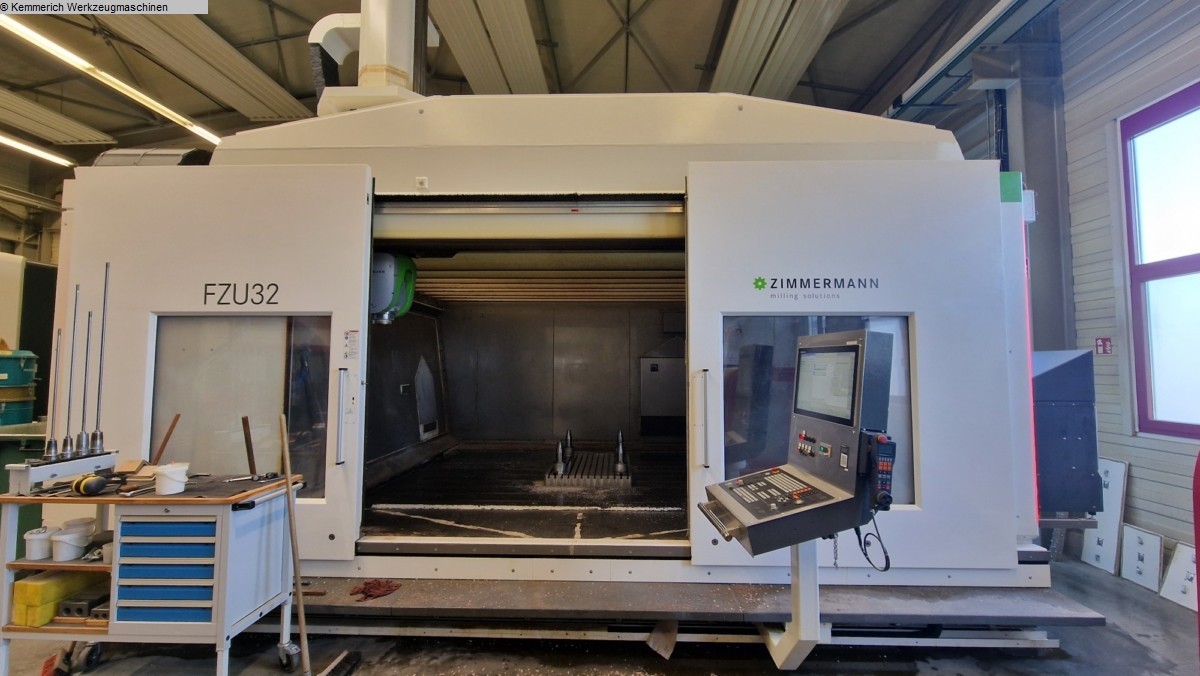

Gantry milling machine is in mint condition
The FZU32 is a remarkably compact 5-axis portal milling machine for machining
aluminium
machining of aluminium, fibre composites, plastics, ureol and steel.
steel. Thanks to the particularly rigid, newly developed centre-guiding gantry,
we can
meet the increasing requirements in model, tool and mould making.
mould making. This thermo-symmetrical design makes the FZU32 less susceptible to
adverse environmental conditions.
|
