| Stock-No. |
1020-21056 |
| Category |

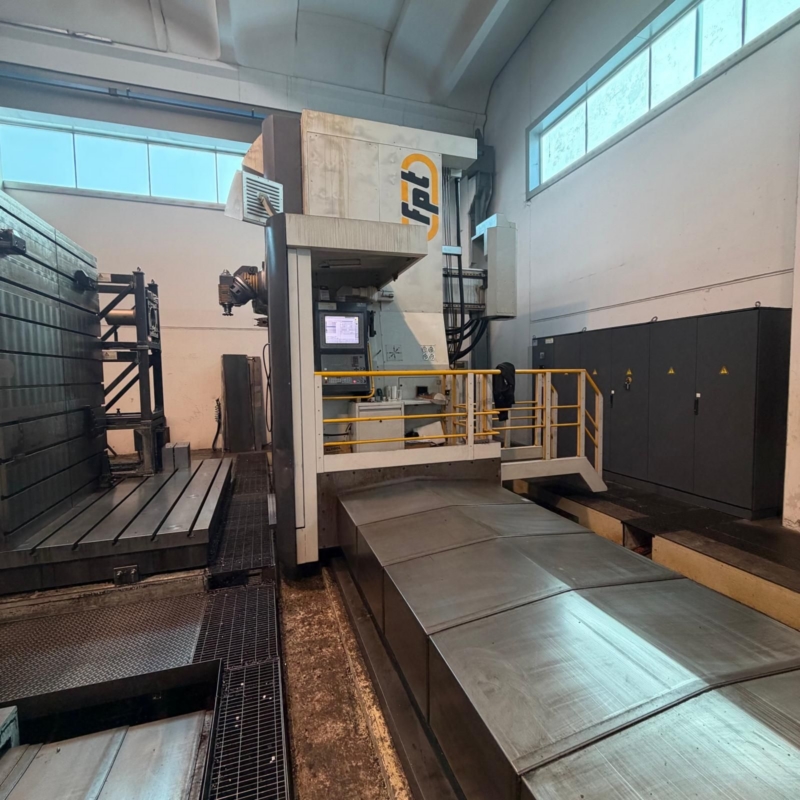

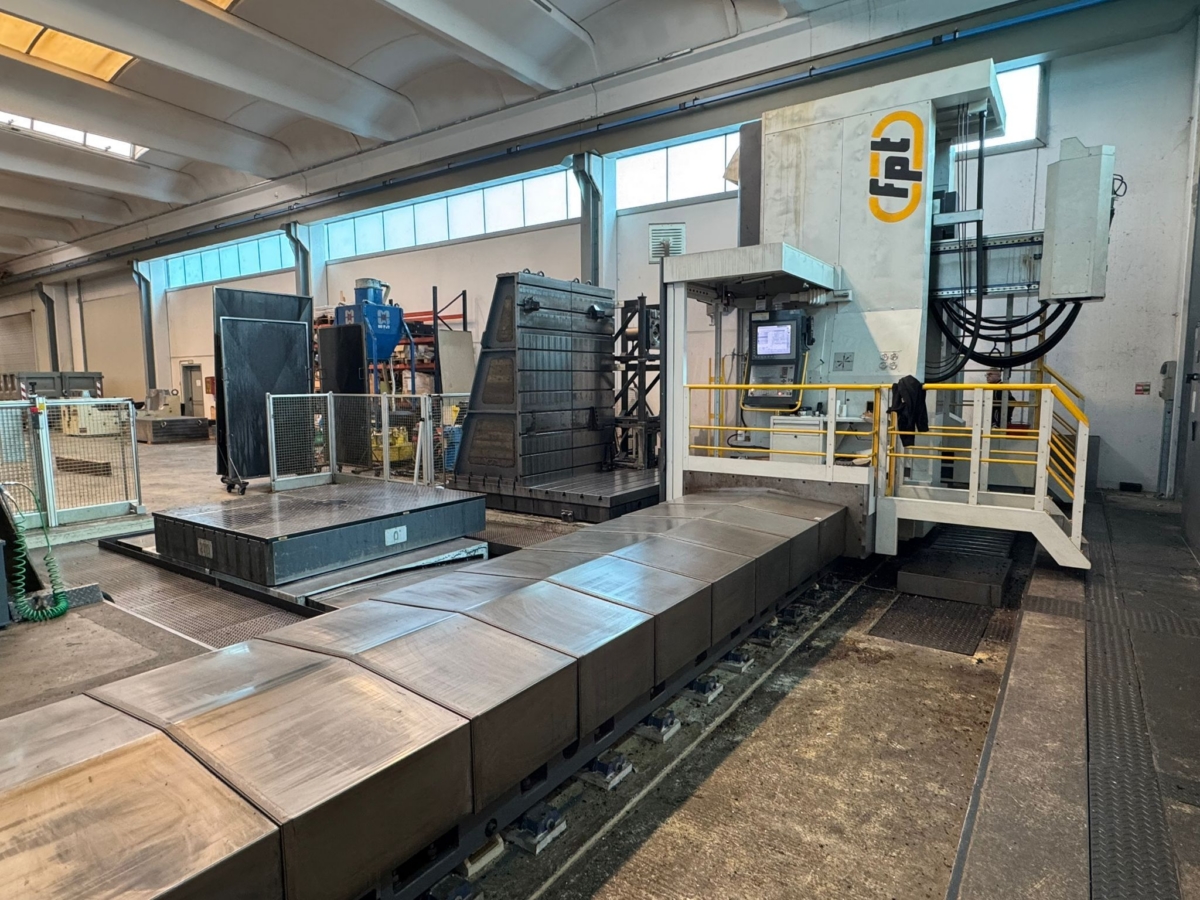

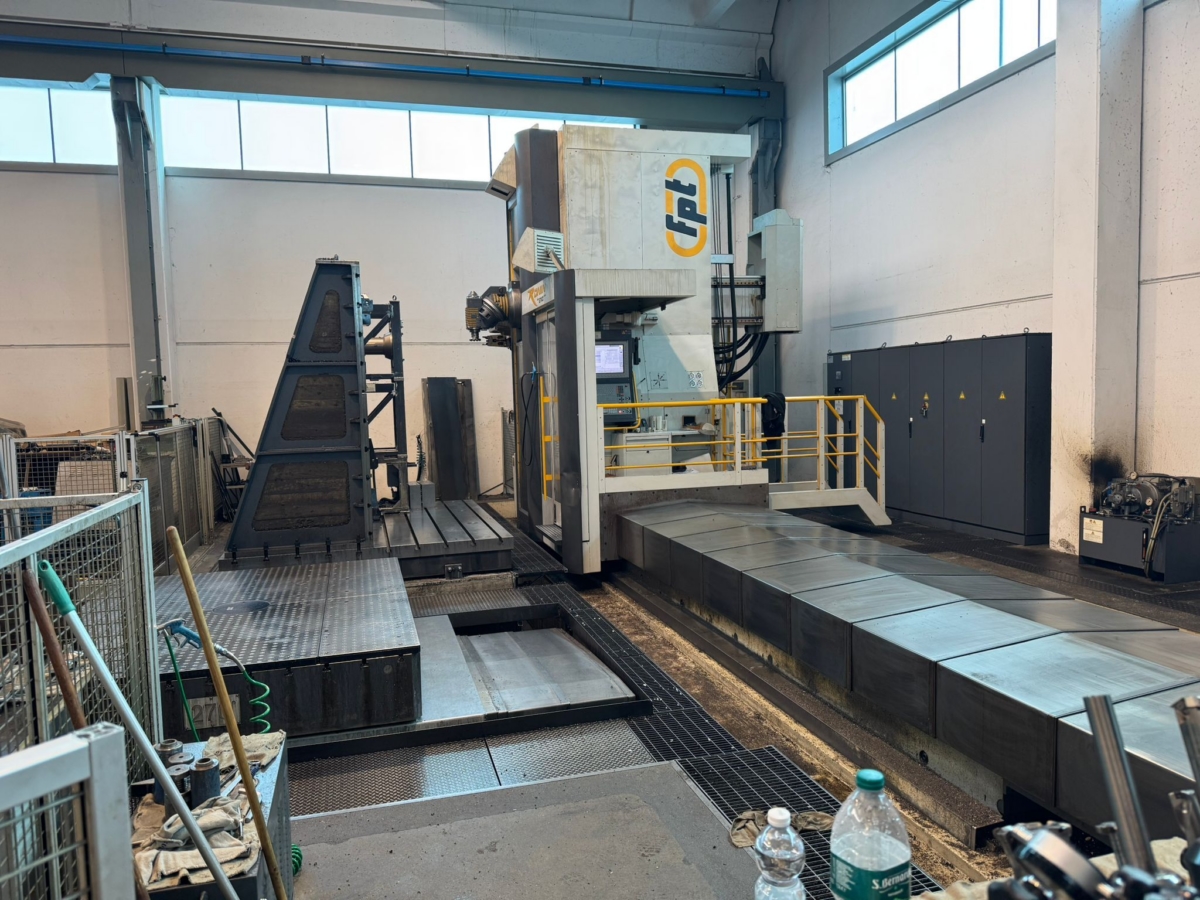

Travelling column milling machine |
| Make |
FPT |
| Type |

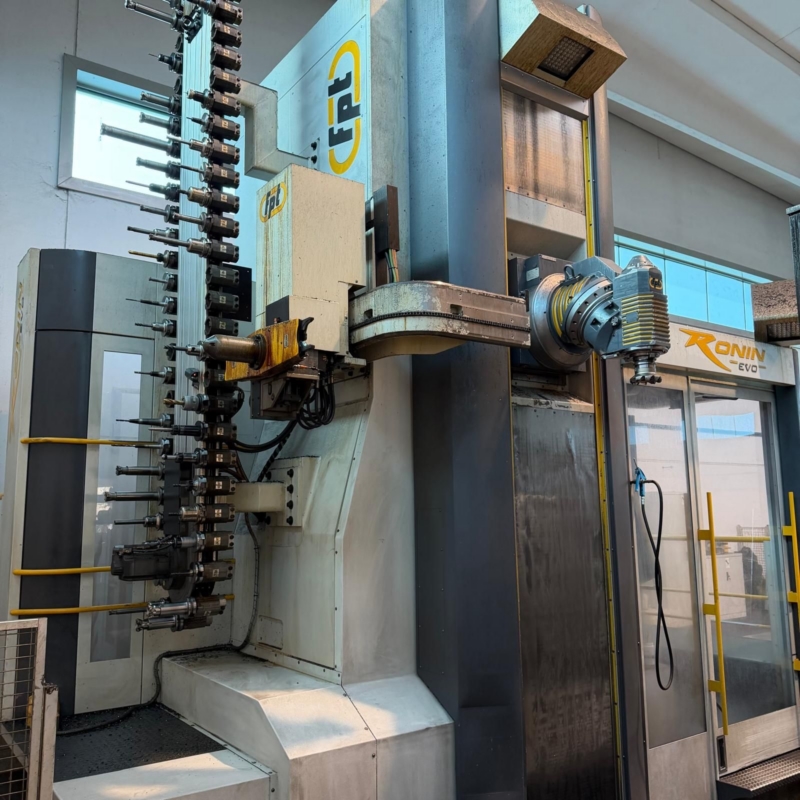

Ronin Evo (M60) |
| New in |
2019 |
| Control |
HEIDENHAIN TNC 640 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Italy |
| Delivery time |
short-dated |
| Freight basis |
ex works "is as is" |
| Price |
| x-travel |
6000 mm |
| y-travel |
2500 mm |
| z-travel |
1500 mm |
| spindle turning speed - stepless |
5000 U/min |
| spindle motor |
42 kW |
| feeds longditudinal/cross/vertical |
15000 mm/min |
| rapid motion -longitudinal/cross/vertical |
35 m/min |
| no. of tools in the magazine |
60 Stück |
| control |
HEIDENHAIN TNC 640 |
| total power requirement |
ca 90 kW |
| weight of the machine ca. |
73,5 t |
| Description |
- CNC Control Heidenhain TNC 640

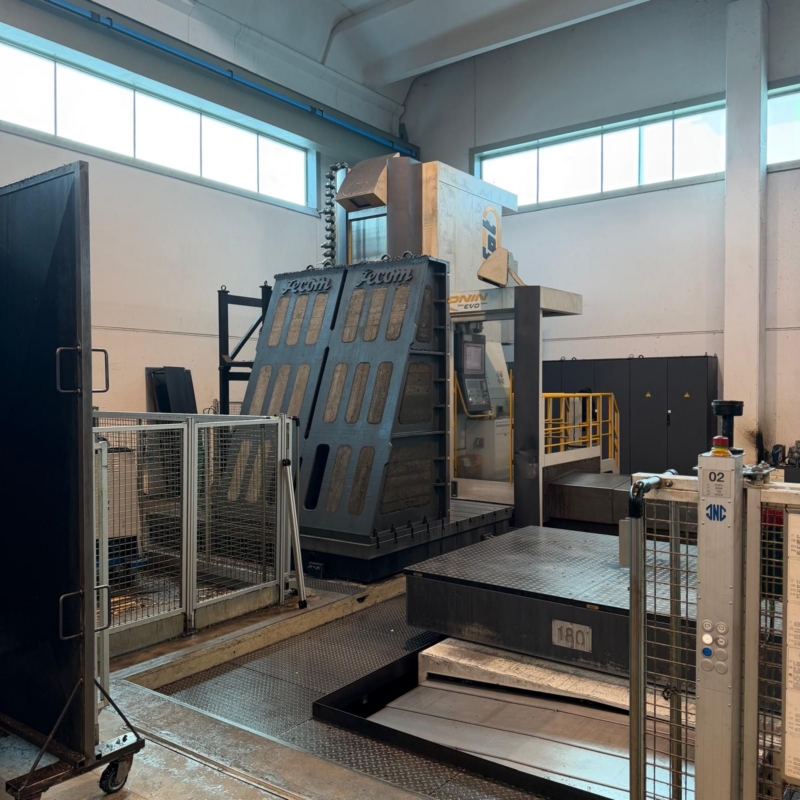

- Rotary-translating table 2000 × 2500 mm, load capacity 30,000 kg
- Worktable 2500 × 2500 mm,

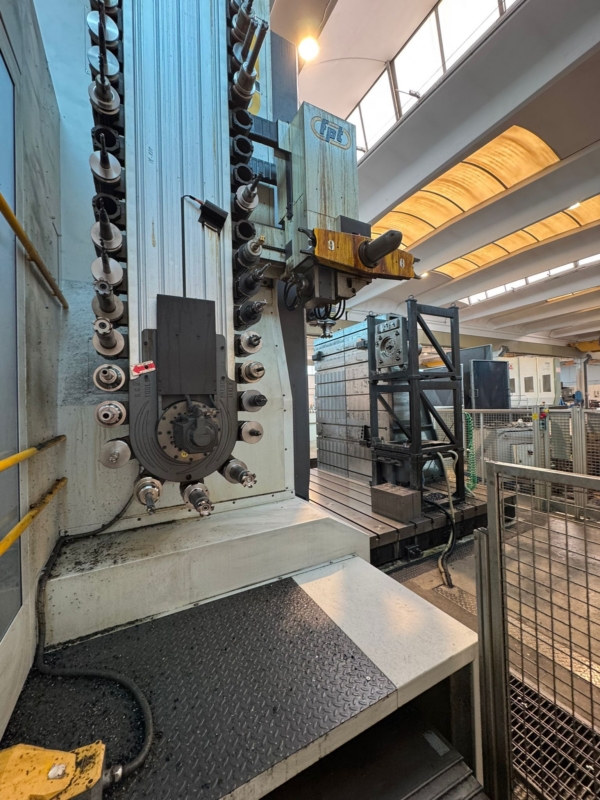

- tool magazine, 60 tools, ISO 50
- Laser tool integrity probe
- workpiece alignment measuring probe

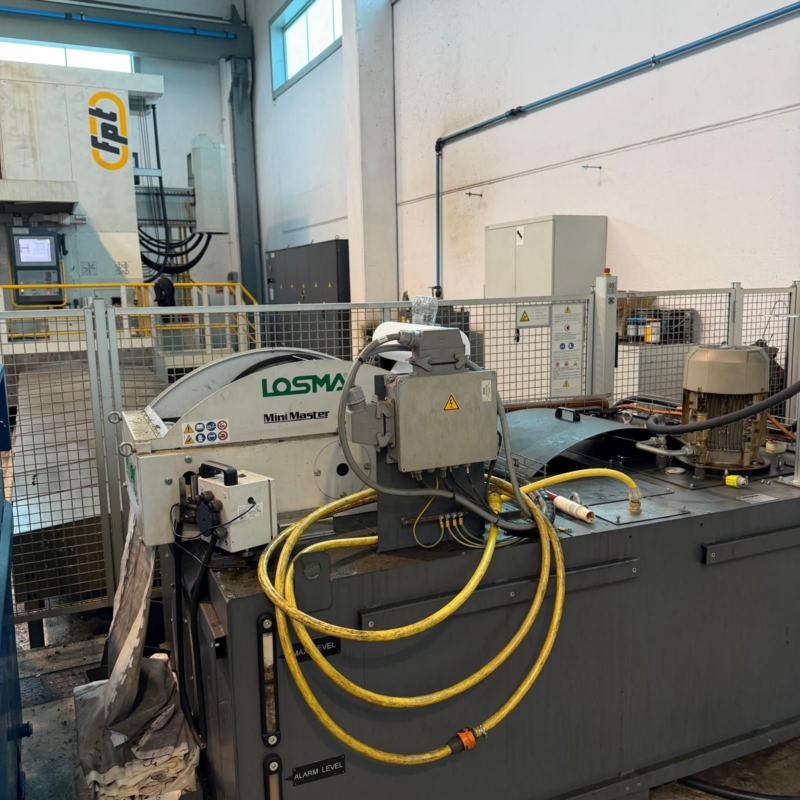

- Coolant system
- Chip conveyor

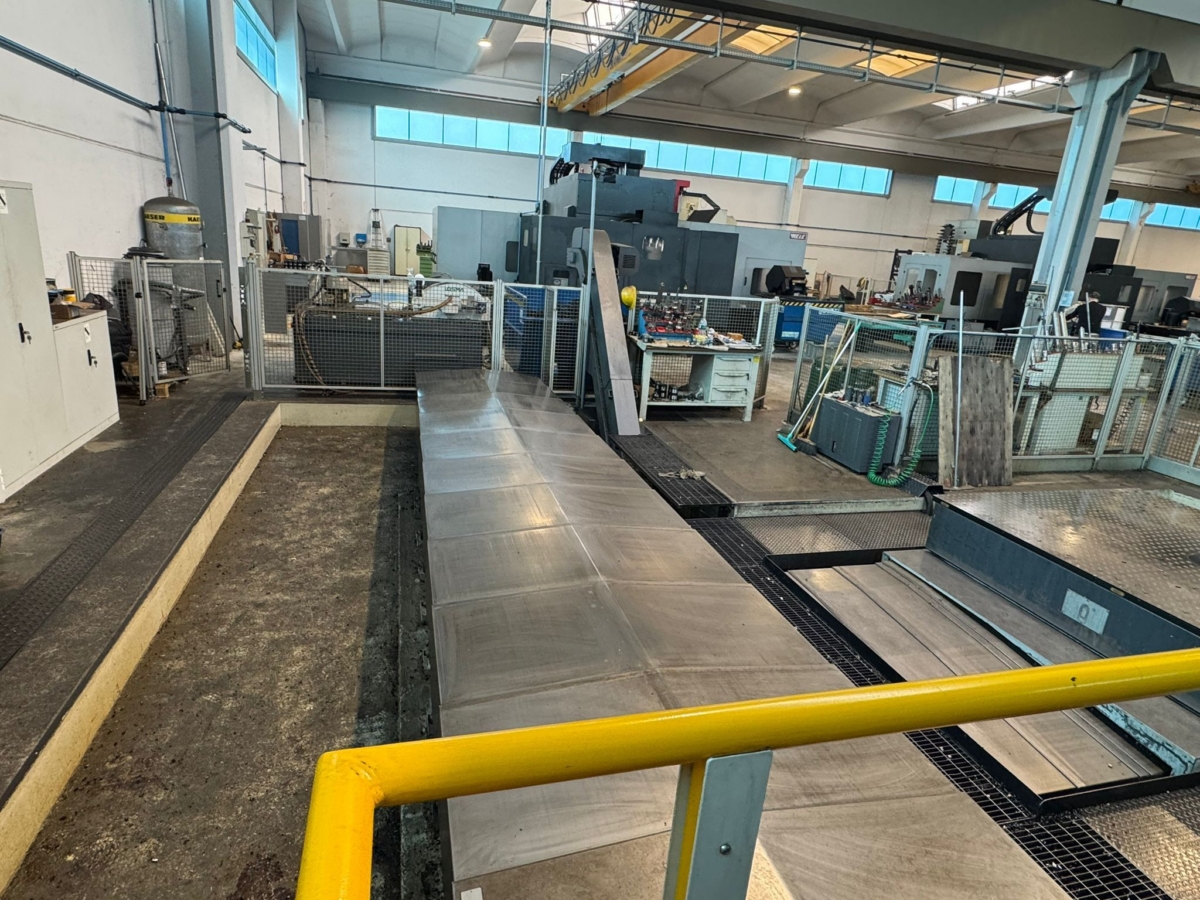

- Anchoring and leveling equipment for X axis 6000 mm
- Vibration detection sensor
- Double cradle for loading/unloading two milling heads, with dedicated software.
- Automatic head clamping system for mechanical heads + electrospindle heads

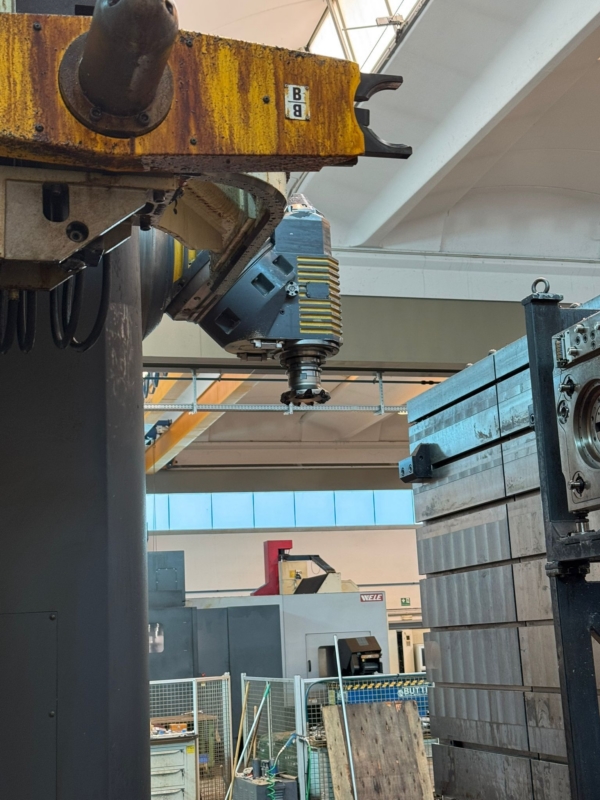

- Universal head with thousandth-degree positioning, 37 kW
- Spindle extension Ø 200 mm, length 400 mm, 42 kW, 5000 rpm
- Rigid tapping for mechanical heads (x2)
- AUTOCAL software for automatic calibration
|
|
|
|
