| Stock-No. |
1020-21057 |
| Category |

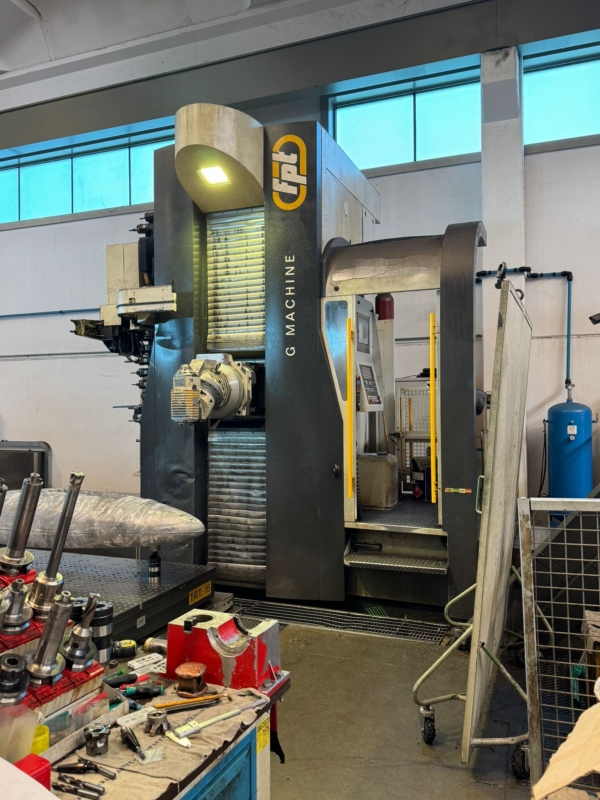

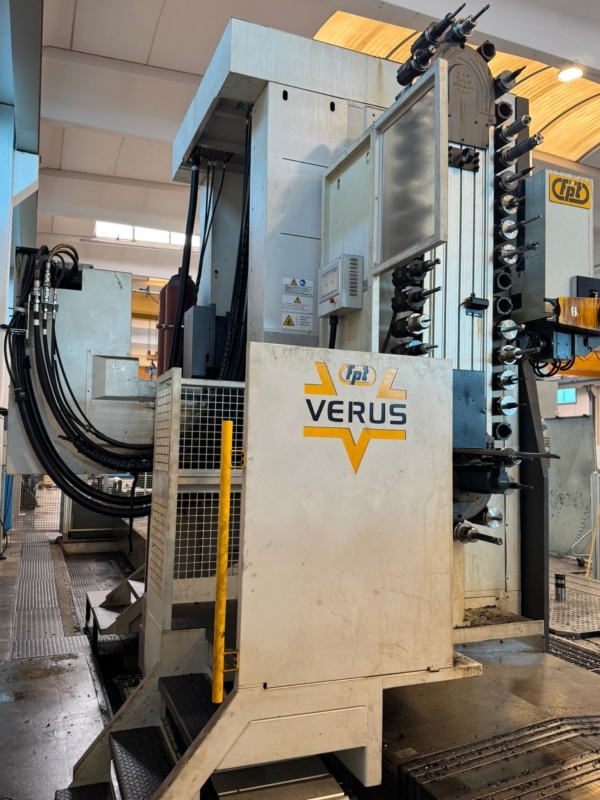

Travelling column milling machine |
| Make |
FPT |
| Type |
Verus |
| New in |
2016 |
| Control |
HEIDENHAIN TNC 530 |
| Location |
ab Werksstandort,unter Strom |
| Origin |
Italy |
| Delivery time |
short-dated |
| Freight basis |
ex works "is as is" |
| Price |
| x-travel |
6000 mm |
| y-travel |
2000 mm |
| z-travel |
1250 mm |
| spindle turning speed - stepless |
5000 U/min |
| spindle motor |
34 kW |
| feeds longditudinal/cross/vertical |
15000 mm/min |
| rapid motion -longitudinal/cross/vertical |
35 m/min |
| no. of tools in the magazine |
40 Stück |
| control |
HEIDENHAIN TNC 530 |
| total power requirement |
60 kW |
| weight of the machine ca. |
- t |
| Description |
- CNC Control Heidenhain TNC 530
- Rigid tapping for mechanical heads,
- AUTOCAL software for automatic calibration
- 3D workpiece alignment measuring probe.
- Semi-automatic accessory change

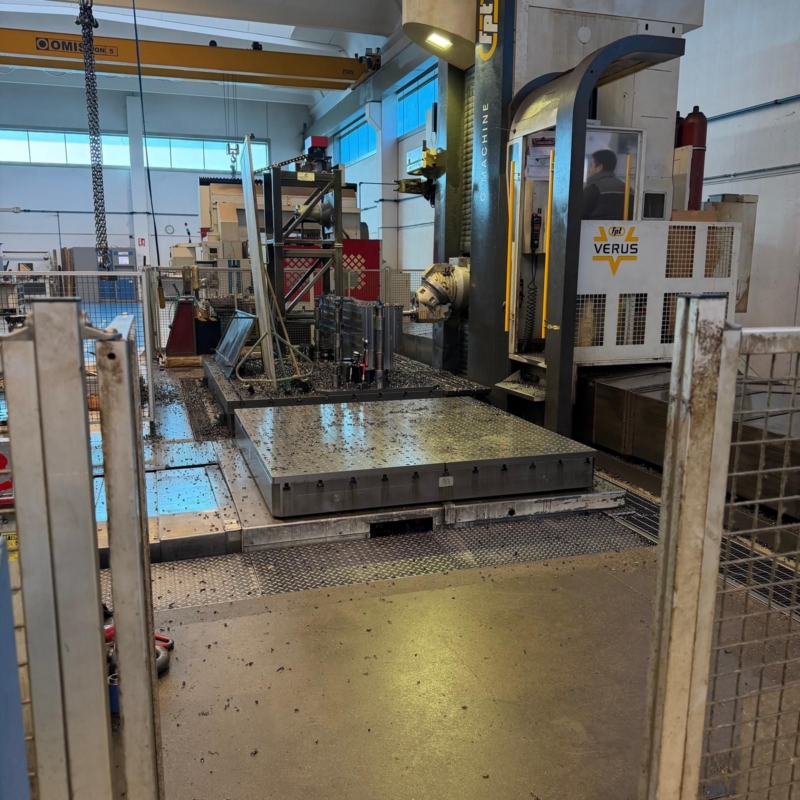

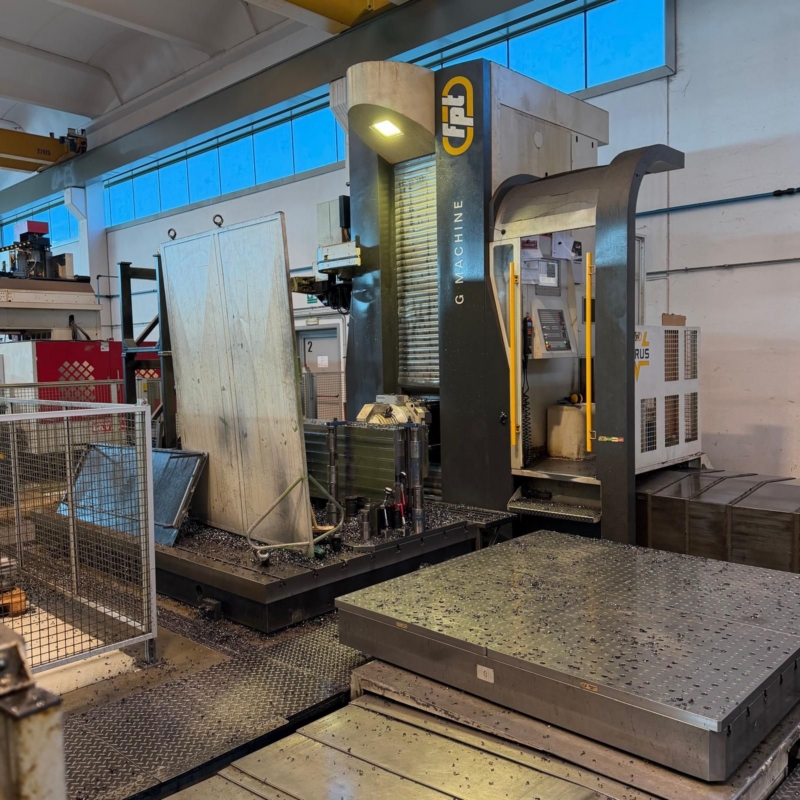

- Hydrostatic rotary-translating table TRT15, size: 2000 × 2000 mm, 15t, V-Axis 1500mm
- Universal bi-rotary head with thousandth-degree positioning
Taper: BT 50

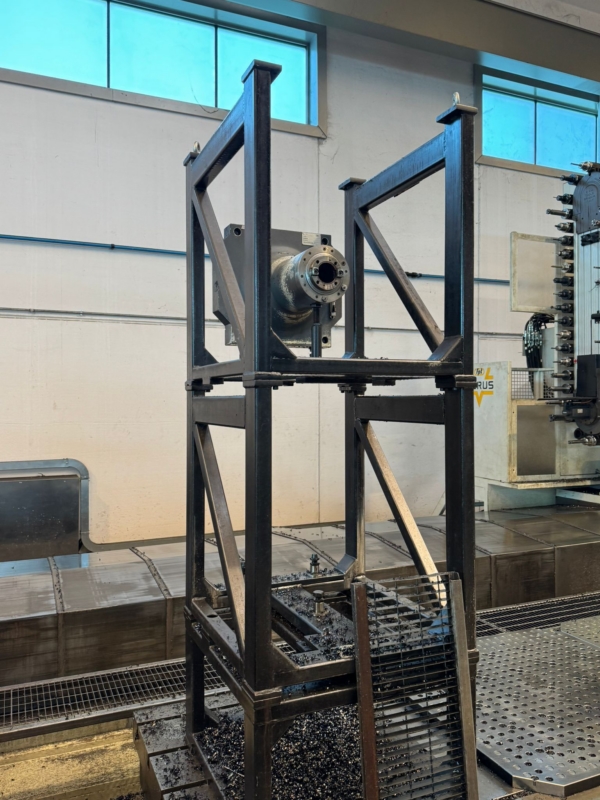

- Double cradle for loading/unloading two milling heads, with dedicated management software

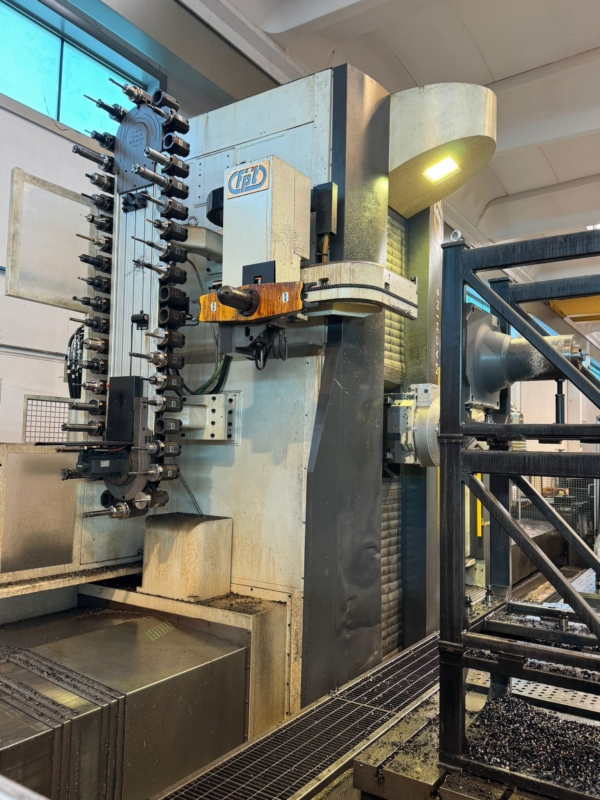

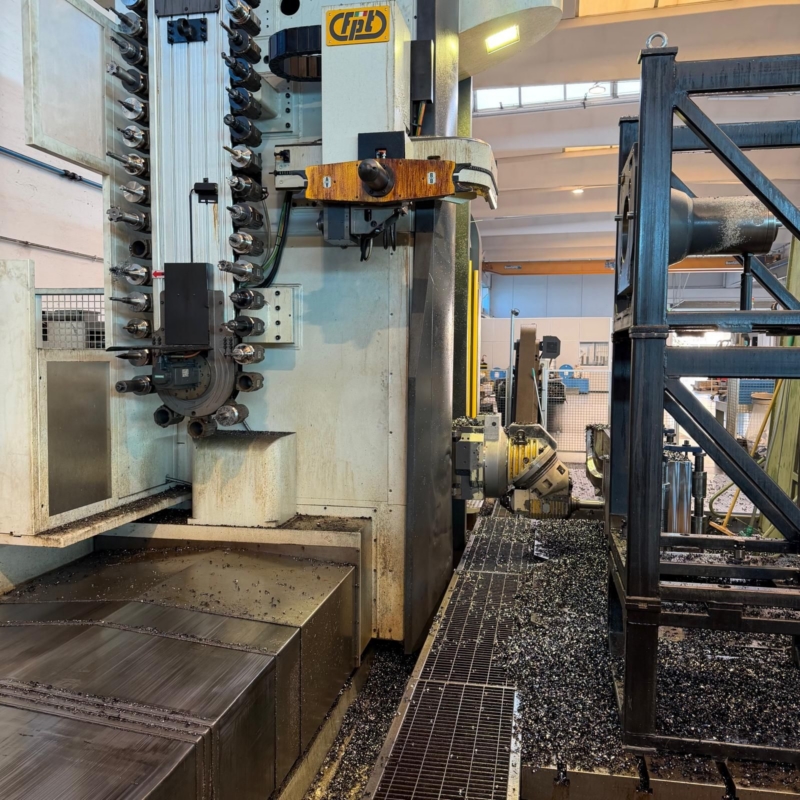

- Chain-type tool magazine, 40 positions, ISO 50
- High-pressure coolant system, external/internal through the tool, with paper filter
-- External pressure: 4 bar
-- Internal pressure: 20 bar
- Through-tool compressed air coolant

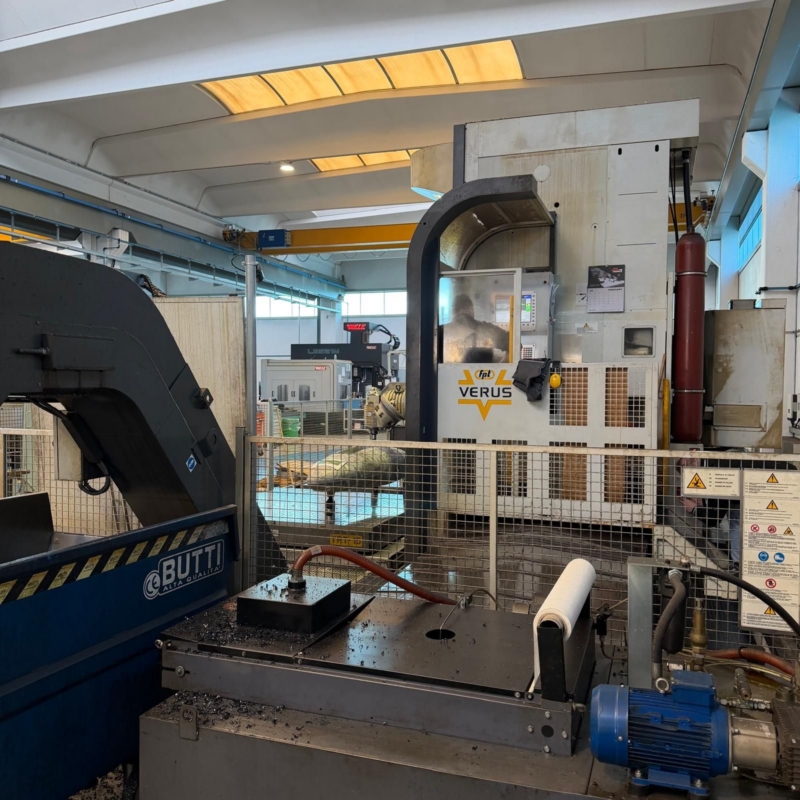

- Chip conveyor with right-side discharge
- Remote control panel
|
