| Stock-No. |
1020-21060 |
| Category |
Ram-Type Floor Boring and Milling M/C |
| Make |
LAZZATI |
| Type |
HB 150T CNC |
| New in |
2015 |
| Control |
|
| Location |
ab Werksstandort,unter Strom |
| Origin |
Italy |
| Delivery time |
short-dated |
| Freight basis |
Ex Site - factory |
| Price |
| spindle diameter |
150 mm |
| x-travel |
6000 mm |
| y-travel |
2600 mm |
| z-travel |
2300 mm |
| w-axis |
900 mm |
| spindle taper ISO |
50 |
| rotary table dia. |
2000 x 3000 mm |
| table load capacity |
30 t |
| spindle turning speed - stepless |
3250 U/min |
| spindle motor |
53 / 65 kW |
| spindle taper ISO |
50 |
| Feeds (X,z,u,w-axis) |
12 / 15 / 15 / 7,5 m/min |
| total power requirement |
55 kW |
| weight of the machine ca. |
t |
| dimensions of the machine ca. |
m |
| Description |
- CNC Control HEIDENHAIN iTNC 530

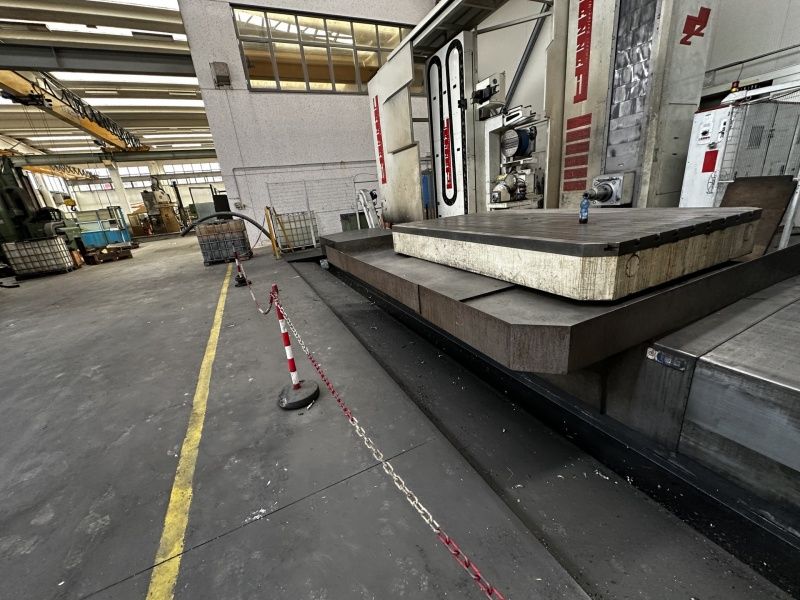

- Rotary Table, Size 2000×3000 mm, 30 t
- ATC 120-fold (ISO 50)

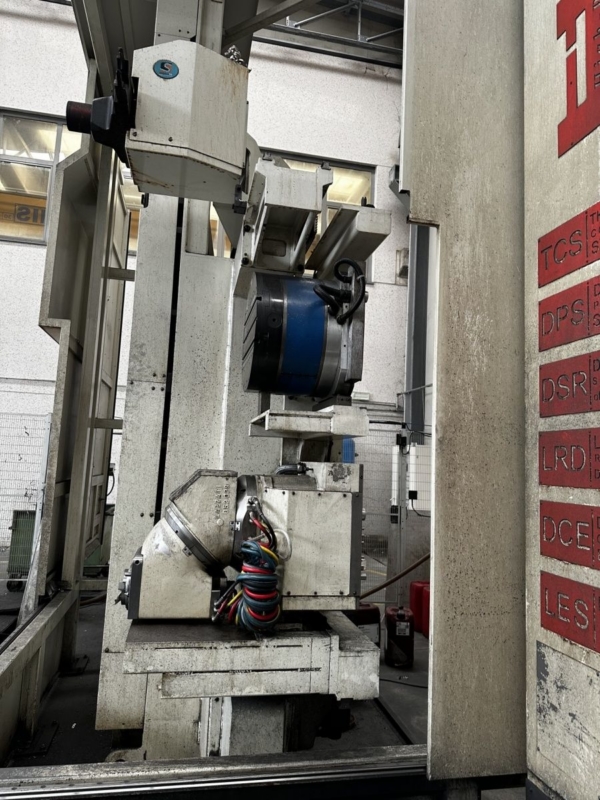

- D'ANDREA UT5/500S Automatic Universal Indexing Head 1°×1°
- Head pickup
- Chip conveyor
|
|
|
|
