| Stock-No. |
1020-21138 |
| Category |
CNC Turning- and Milling Center |
| Make |
TRAUB |
| Type |

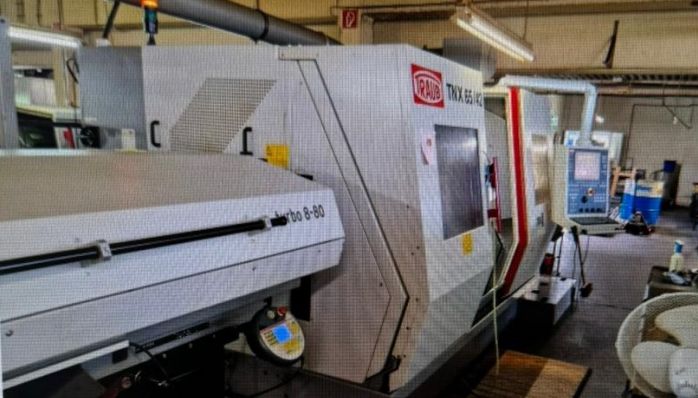

TNX 65/42 |
| New in |
2015 |
| Control |
TX8i-s |
| Location |
ab Werksstandort unter Strom |
| Origin |
Germany |
| Delivery time |
immediately |
| Freight basis |
Ex Site - factory |
| Price |
| turning diameter |
65 mm |
| turning length |
650 mm |
| control |
TX8i-s |
| Main Spindle: |
|
| spindle passage |
65 mm |
| spindle turning speed - stepless |
5000 U/min |
| drive capacity - spindle motor |
24 / 17 kW |
| spindle bearing diameter |
110 mm |
| Torque |
192 Nm |
| x-travel |
175 mm |
| z-travel |
650 mm |
| y-travel |
80 (+/- 40) mm |
| 2nd Spindle: |
|
| spindle passage |
65 mm |
| spindle turning speed - stepless |
5000 U/min |
| drive capacity - spindle motor |
24 / 17 kW |
| spindle bearing diameter |
110 mm |
| Torque |
192 Nm |
| total power requirement |
85 kW |
| weight of the machine ca. |
10 t |
| dimensions of the machine ca. |
3.420 x 3300 x 2.258 m |
| Description |
Main spindle: fully reconditioned in 2026

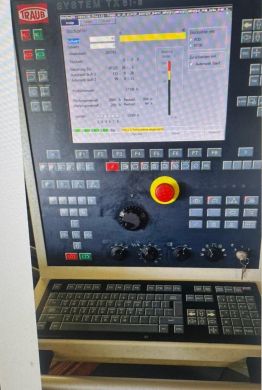

- TRAUB TX8i-s CNC control
- Main and counter spindles
-- 2 x Hainbuch Kombi Axfix 65
-- C-axis 0.001°
- 3 tool turrets (10-position, VDI 30)
-- Turret: 10-position with driven tools, 6,000 rpm, 5.5/3.7 kW
- Coolant mist extraction and separation system
- In-machine optical tool measurement (TRAUB ATC)

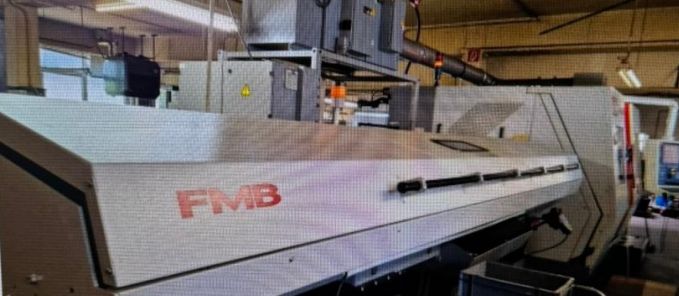

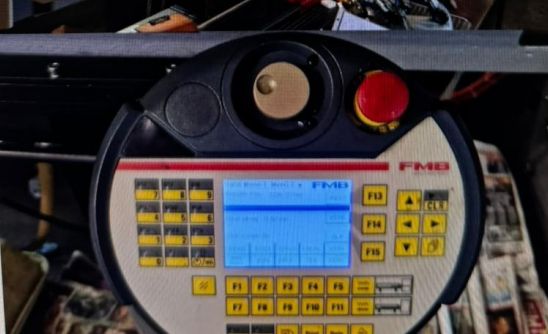

- FMB turbo 8-80 bar feed magazine with multiple slides and channels
- Paper belt filter & high-pressure coolant supply High pressure: 8 bar, medium/high pressure
2080 bar

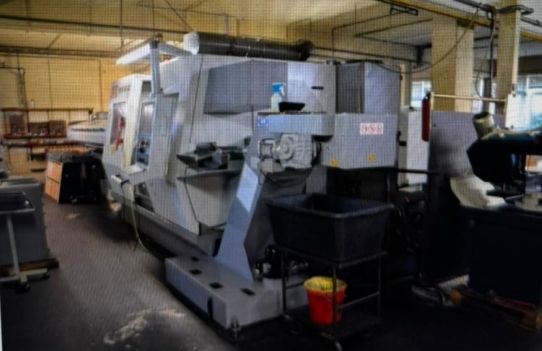

- Chip conveyor
Spindle operating hours: 13,100 h
|
