| Stock-No. |
1020-21146 |
| Category |

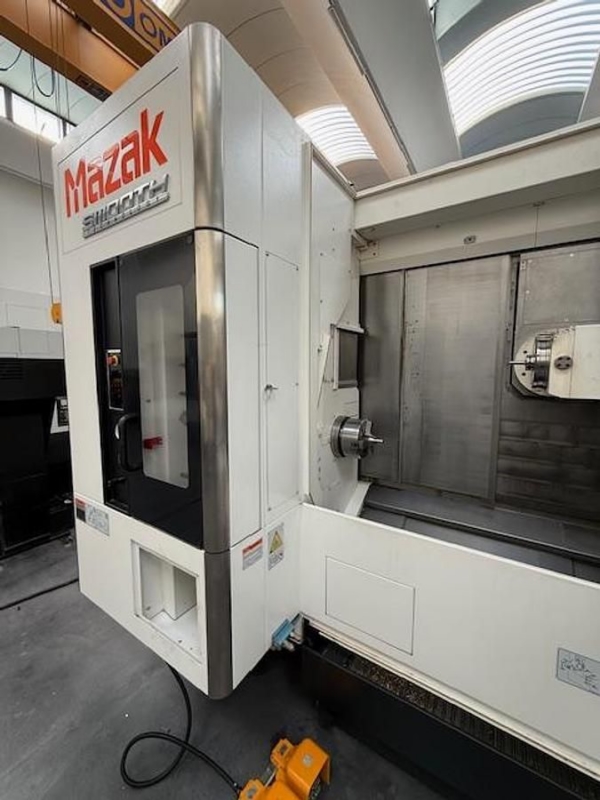

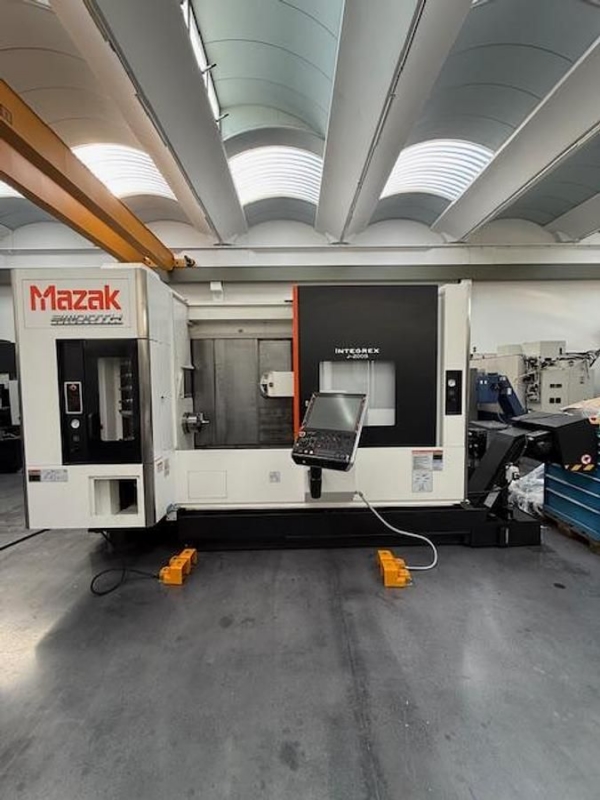

CNC Turning- and Milling Center |
| Make |
MAZAK |
| Type |

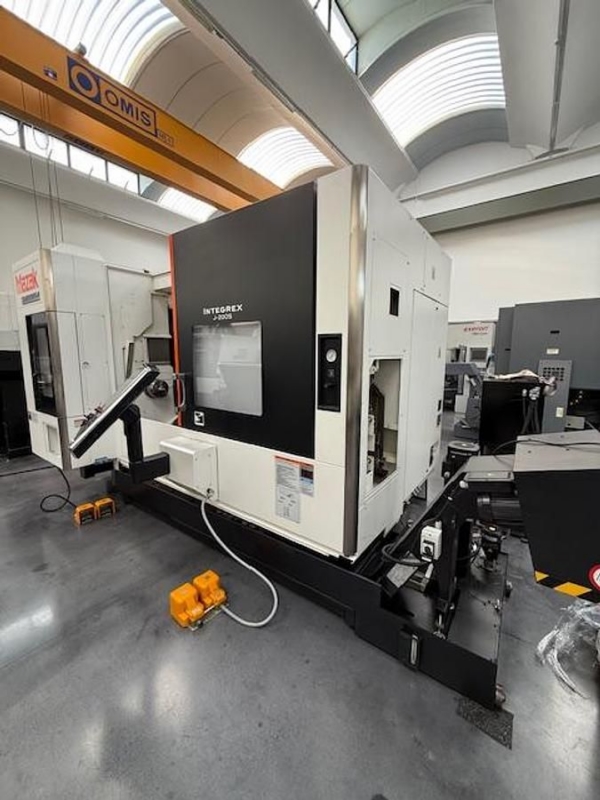

Integrex j-200S |
| New in |
2021 |

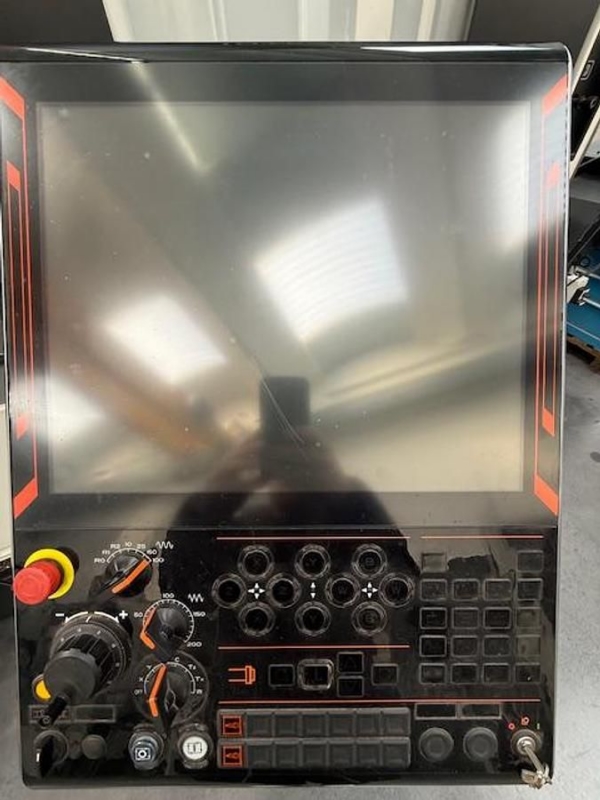

| Control |
Mazatrol Smooth G |
| Location |
ab Lagerstandort - EU |
| Origin |
Japan |
| Delivery time |
immediately |
| Freight basis |
ex location |
| Price |
| turning diameter |
500 mm |
| turning length |
910 mm |
| control |
Mazatrol Smooth G |
| axis stroke (X,Y,Z) |
450/200/960 mm |
| rapid travel x/y/z |
40000 mm/min |
| rapid travel W |
30 m/min |
| Main spindle: |
|
| spindle turning speed range |
5000 U/min |
| Motor output (40%ED) |
11 KW |
| capacity at 100% |
7,5 KW |
| spindle bore |
76 mm |
| bar material dia. |
65 mm |
| spindle nose |
A2/6 |
| 3-jaw chuck |
Kitagawa BR08 |
| milling spindle |
|
| turning speed range |
12000 U/min |
| power capacity |
7,5 kW |
| tool taper |
Capto C6 |
| tool change unit |
|
| numbers of positions in the tool changer |
36 |
| max. tool diameter |
125 mm |
| max. tool length |
210 mm |
| max. tool weight |
5 kg |
| 2nd Spindle: |
|
| Subspindle Power |
11 / 7,5 kW |
| Subspindle - speed |
5000 U/min |
| spindle bore |
61 mm |
| spindle nose |
A2/5 |
| total power requirement |
51,1 kVA |
| weight of the machine ca. |
9,5 t |
| dimensions of the machine ca. |
3,8 x 2,5 x 2,5 m |
| Description |
- CNC Control Smooth G
- Main & Subspindle
- ATC for 36 tools
- Chip Conveyor

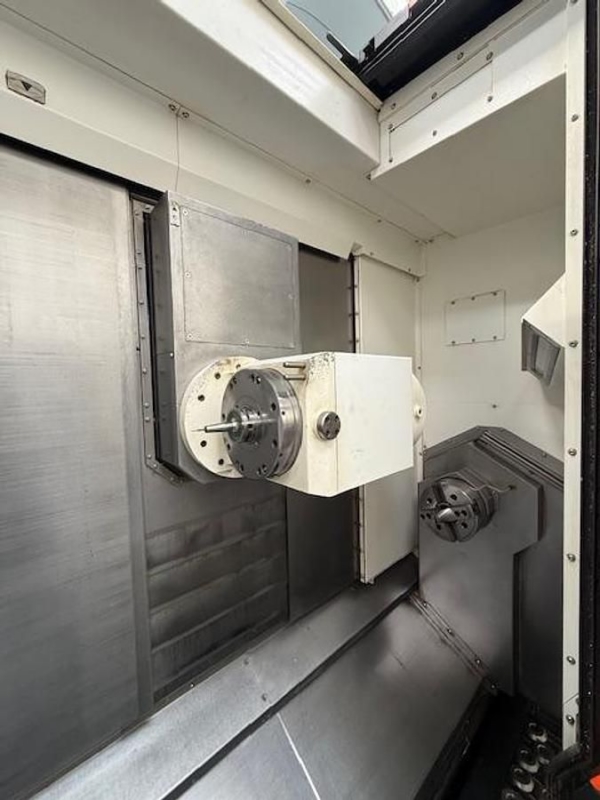

- Milling Head with B-Axis (-30° / +210°)

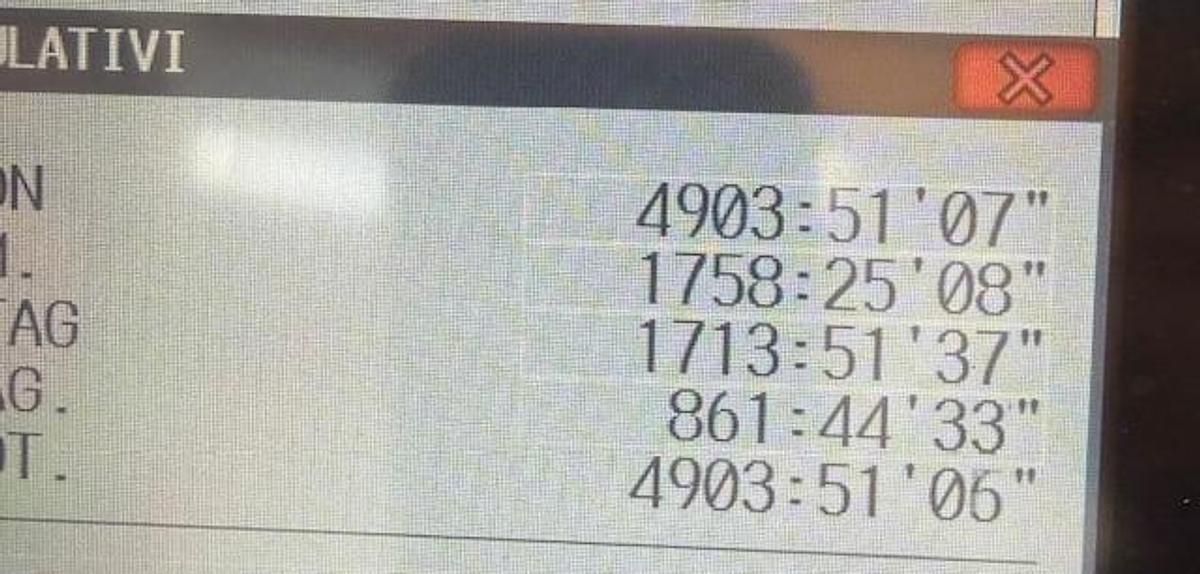

4900h Power On - Spindle Hours: 870h

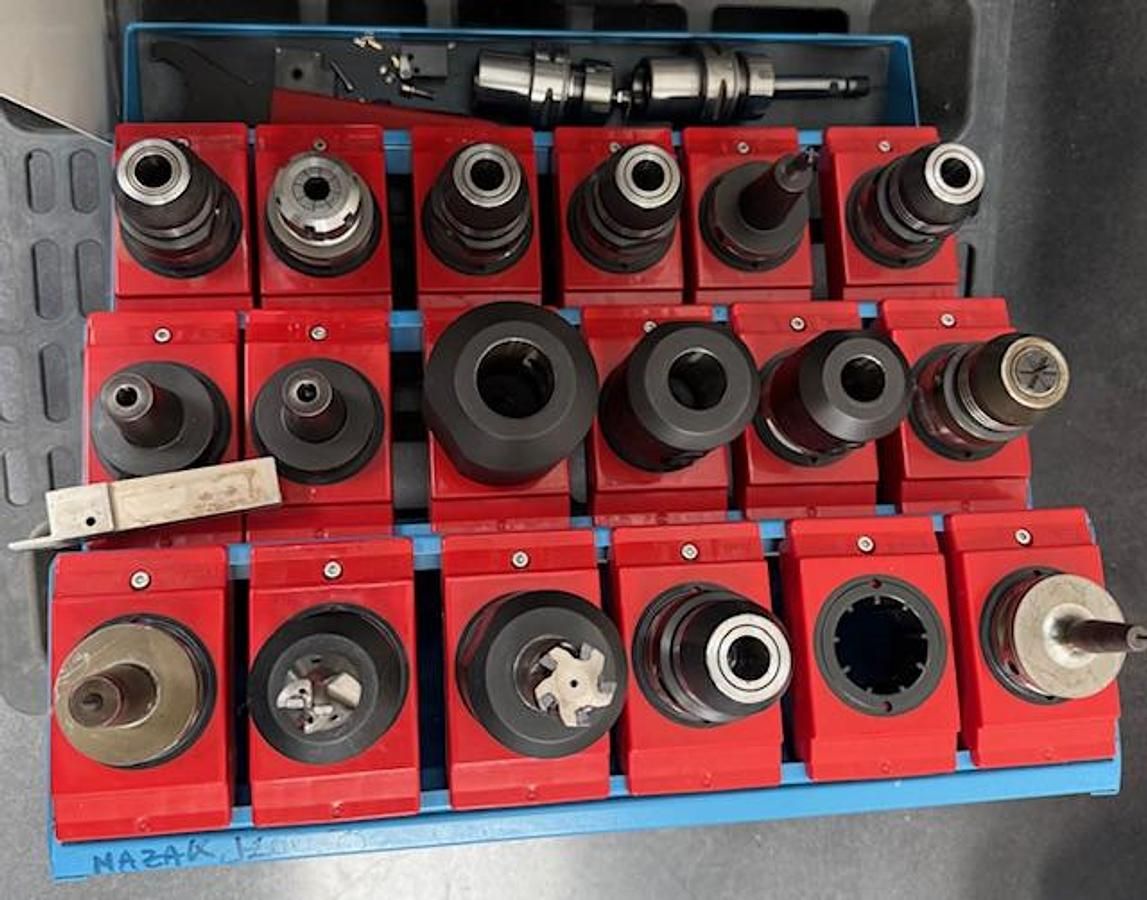

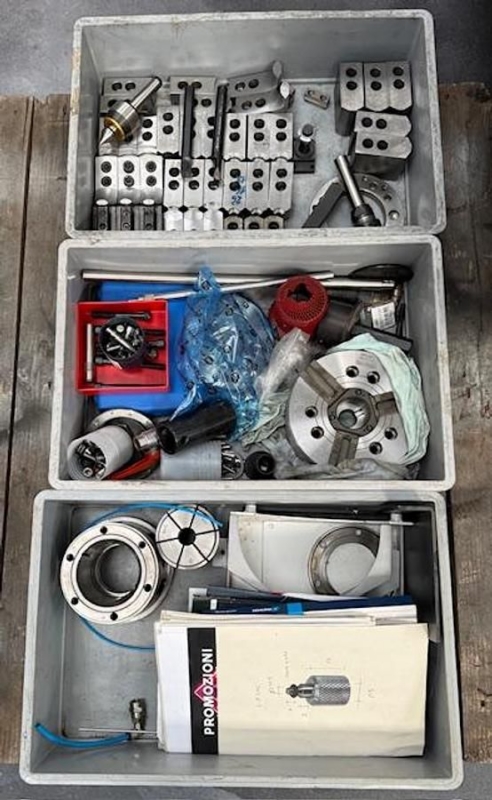

Machine with a reasonable supply of tools, chucks and collet holders
|
|
|
|
